GAIA Neo Borresen Adapter

A purpose-built adapter for installing GAIA Neo isolators on compatible Borresen loudspeakers.

INTRODUCTION

Secure GAIA Neo installation for Borresen X Series speakers

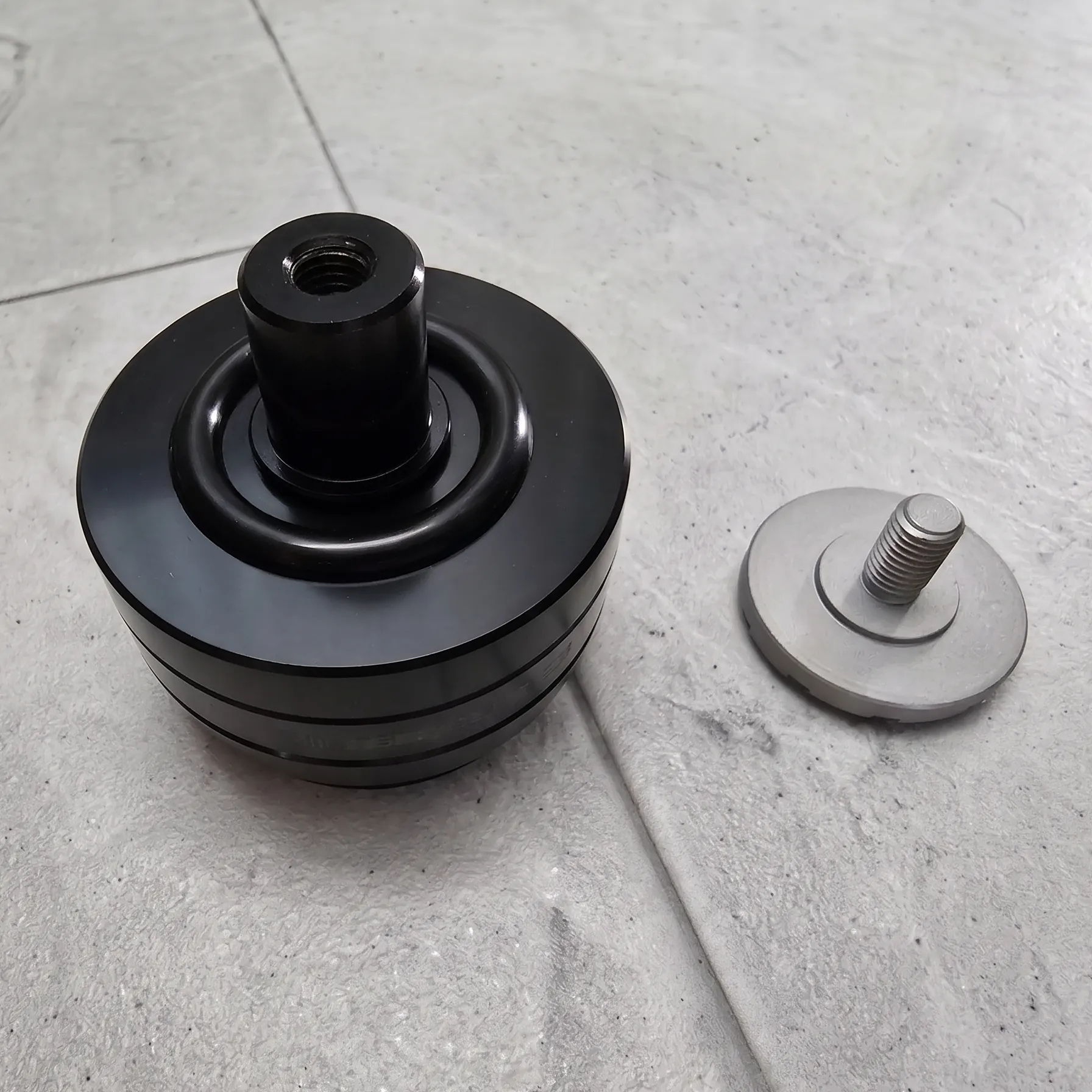

The GAIA Neo Borresen Adapter is designed to secure a GAIA Neo isolator through the loudspeaker’s existing outrigger mounting point, using the included M10-1.5 thread adapter together with the original Borresen foot cap.

Once installed, GAIA Neo isolators help reduce the transfer of vibrational energy between the speaker and the supporting surface. This allows the loudspeaker to perform with greater clarity, focus, and openness.

Compatible Borresen X Series speakers can also benefit from the height adjustment of the GAIA Neo, especially on uneven floors. A set of four Borresen Adapters and four M10-1.5 thread adapters is included with every purchase.

KEY FEATURES

Designed for a clean, confident fit

The adapter creates the connection needed to install GAIA Neo isolators while preserving a refined appearance suitable for high-performance listening rooms.

Designed for Borresen X Series

Confirmed for use with Borresen X Series speakers using the compatible outrigger mounting configuration.

Includes M10-1.5 Thread Adapter

The included threaded insert fastens into the adapter and allows the original Borresen foot cap to secure the assembly.

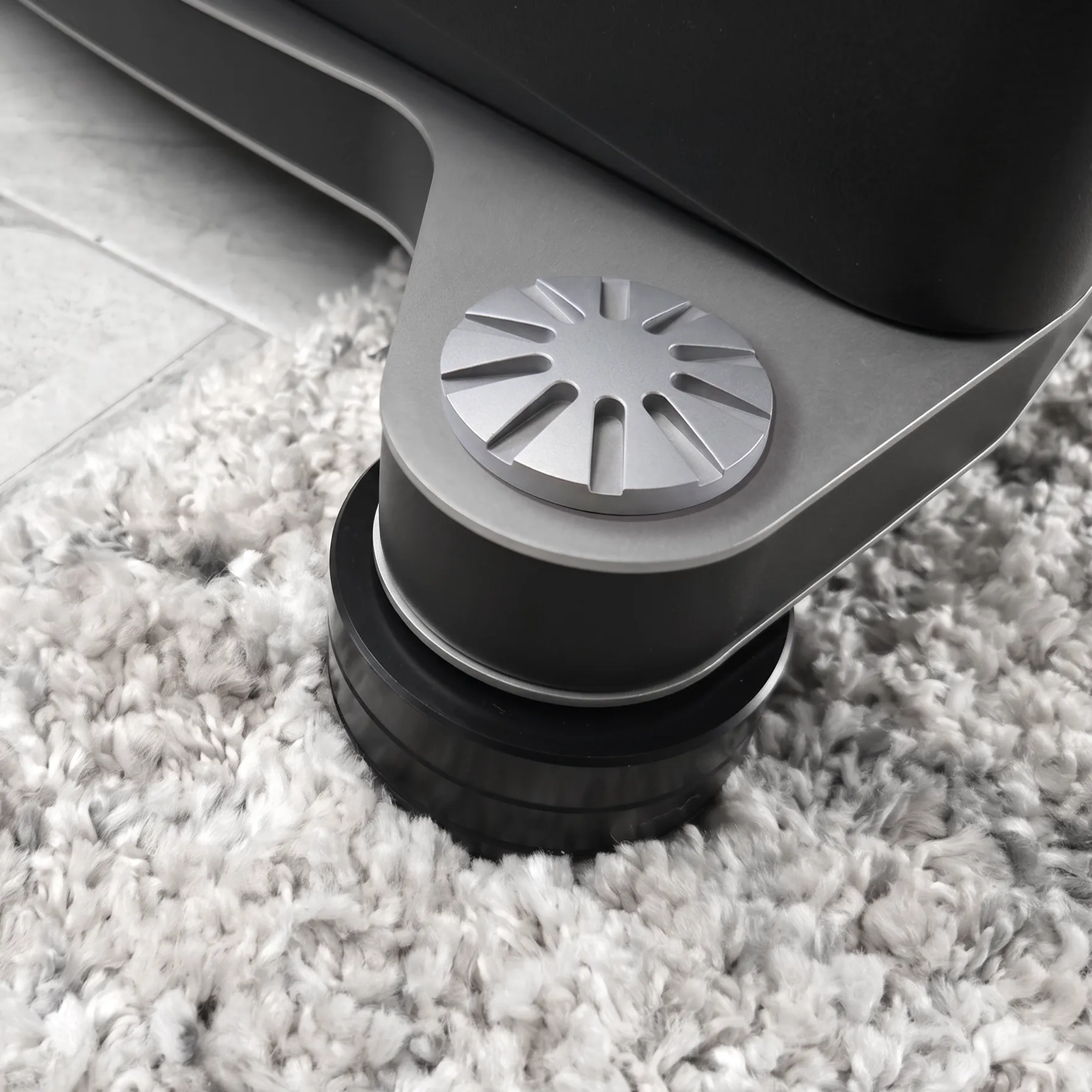

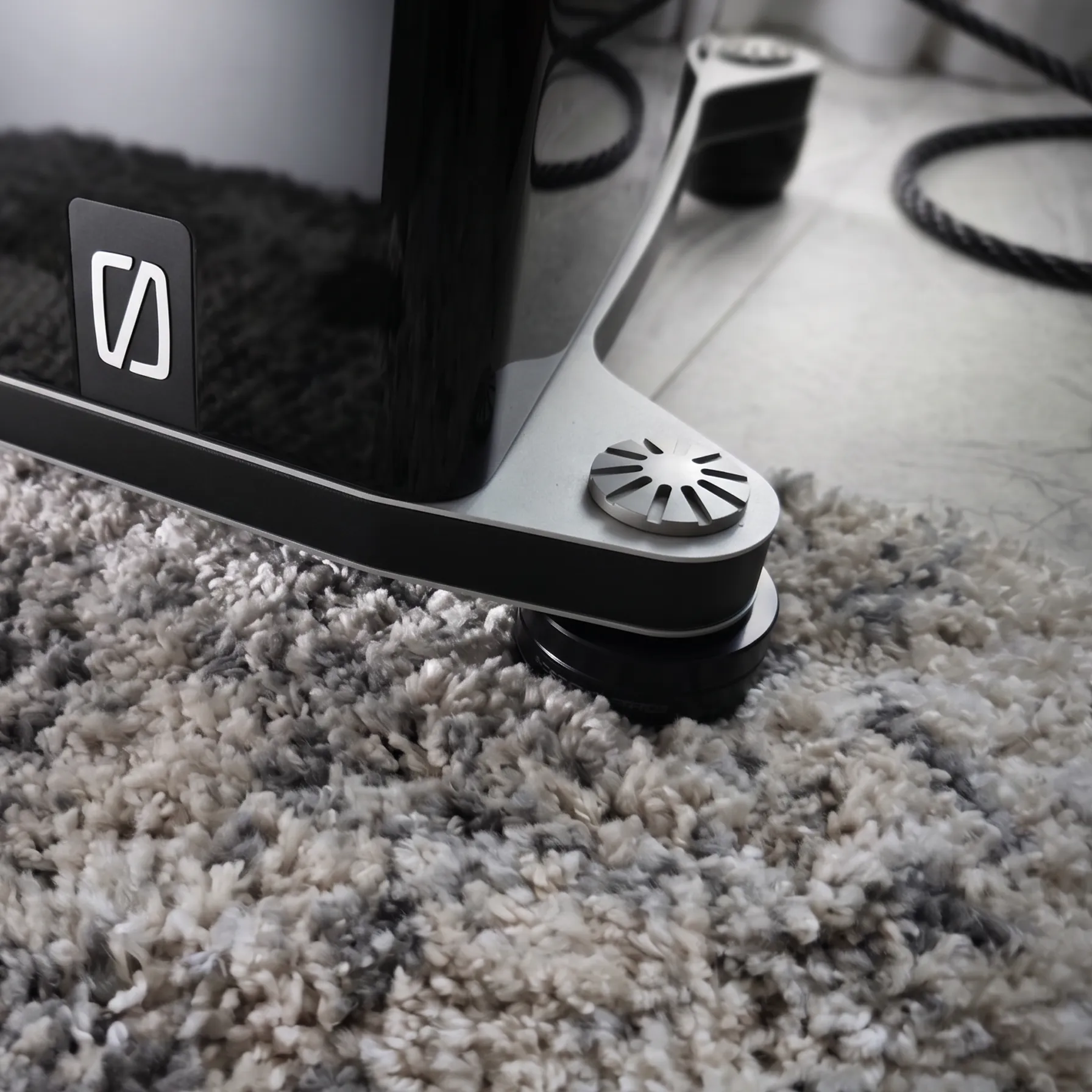

Secure Outrigger Installation

The assembly installs through the speaker’s outrigger mounting hole for a stable connection to the GAIA Neo isolator.

Proper IsoAcoustics Orientation

The GAIA Neo and adapter assembly can be rotated so the IsoAcoustics logo aligns with the front of the speaker.

Precision-Machined Design

The black adapter body integrates cleanly with the outrigger assembly for a low-profile, premium look.

Made for GAIA Neo

Designed specifically to support GAIA Neo installation on compatible Borresen X Series loudspeakers.

INSTALLATION

1 /

Install the thread adapter

Fasten the included M10-1.5 thread adapter into the flanged side of the Borresen Adapter.

2 /

Attach the adapter to GAIA Neo

Thread the Borresen Adapter into the top of the GAIA Neo housing and tighten securely by hand.

3 /

Install the assembly on the speaker

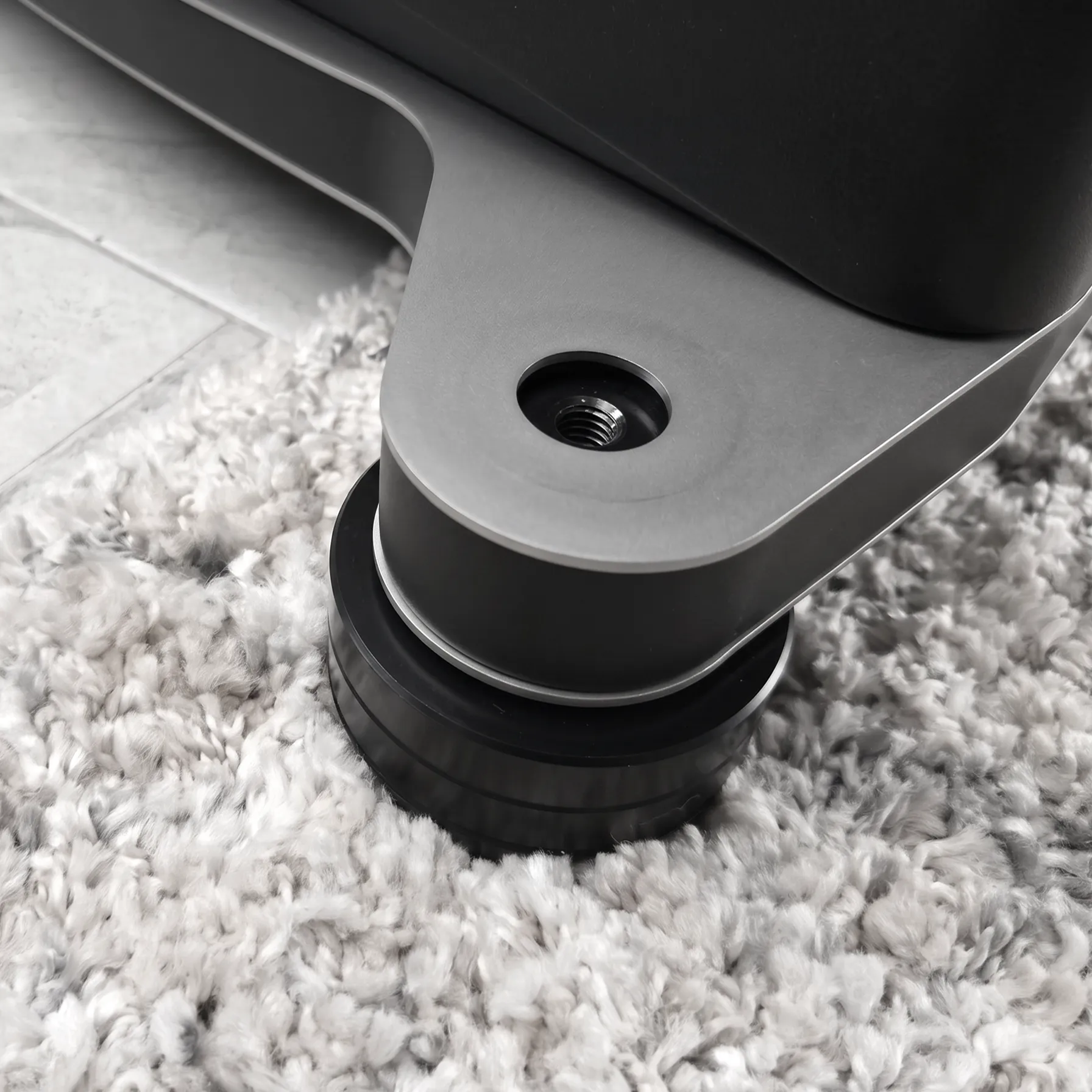

Remove the existing Borresen feet, insert the GAIA Neo and adapter assembly through the outrigger mounting hole, align the IsoAcoustics logo with the front of the speaker, then secure it using the original Borresen foot cap.

SPECIFICATIONS

Package includes*
4 x Borresen adapters
4 x M10-1.5 thread adapters

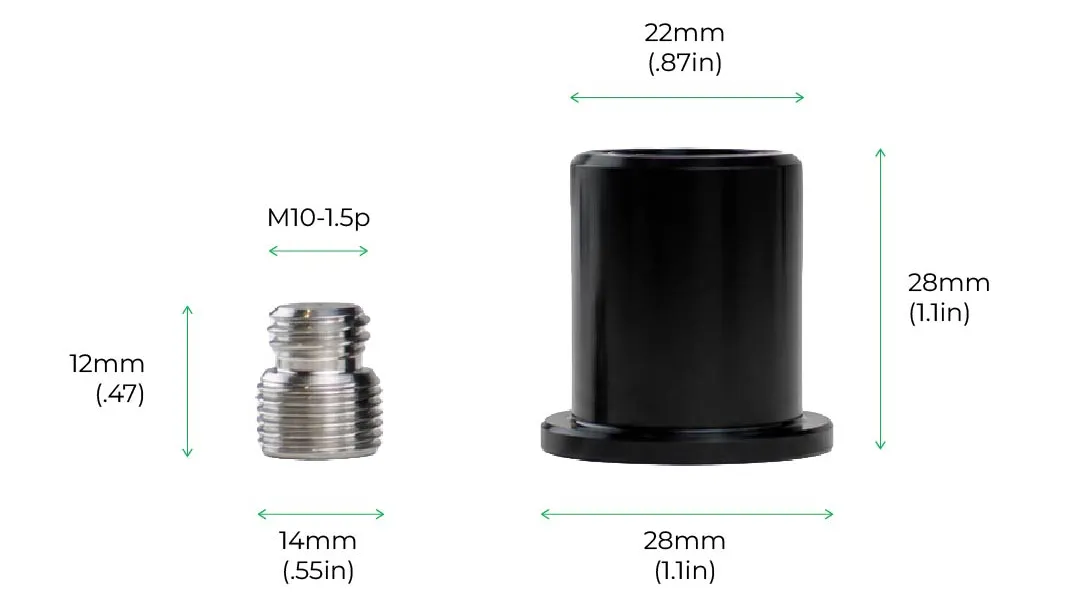

Thread Adapter
M10-1.5
Thread Adapter Height
12 mm (0.47 in)
Thread Adapter Diameter
14 mm (0.55 in)
Borresen Adapter Height
28 mm (1.1 in)
Borresen Adapter Top Diameter
22 mm (0.87 in)
Borresen Adapter Base Diameter
28 mm (1.1 in)
*The original Borresen foot caps are reused during installation.

faqs

No, the GAIA Neo Borresen Adapter is only compatible with the GAIA Neo series.

The GAIA Neo Borresen Adapter is required for the for Borresen X Series speakers. This includes Børresen X2, Børresen X3, Børresen X6

Each package includes enough adapters for one loudspeaker using four GAIA Neo isolators. Two packages are required for a pair of loudspeakers.

Select the GAIA Neo model according to the weight of your loudspeaker. Use the IsoAcoustics Product Selector or contact your dealer for help choosing the appropriate model.

Yes. The original Børresen foot caps are reused to secure the adapter and GAIA Neo assembly to the loudspeaker’s outrigger. The original foot caps are not included with the adapter package.

RELATED PRODUCTS

GAIA Neo Series

Experience improved sonic clarity with GAIA Neo Series speaker isolation feet.

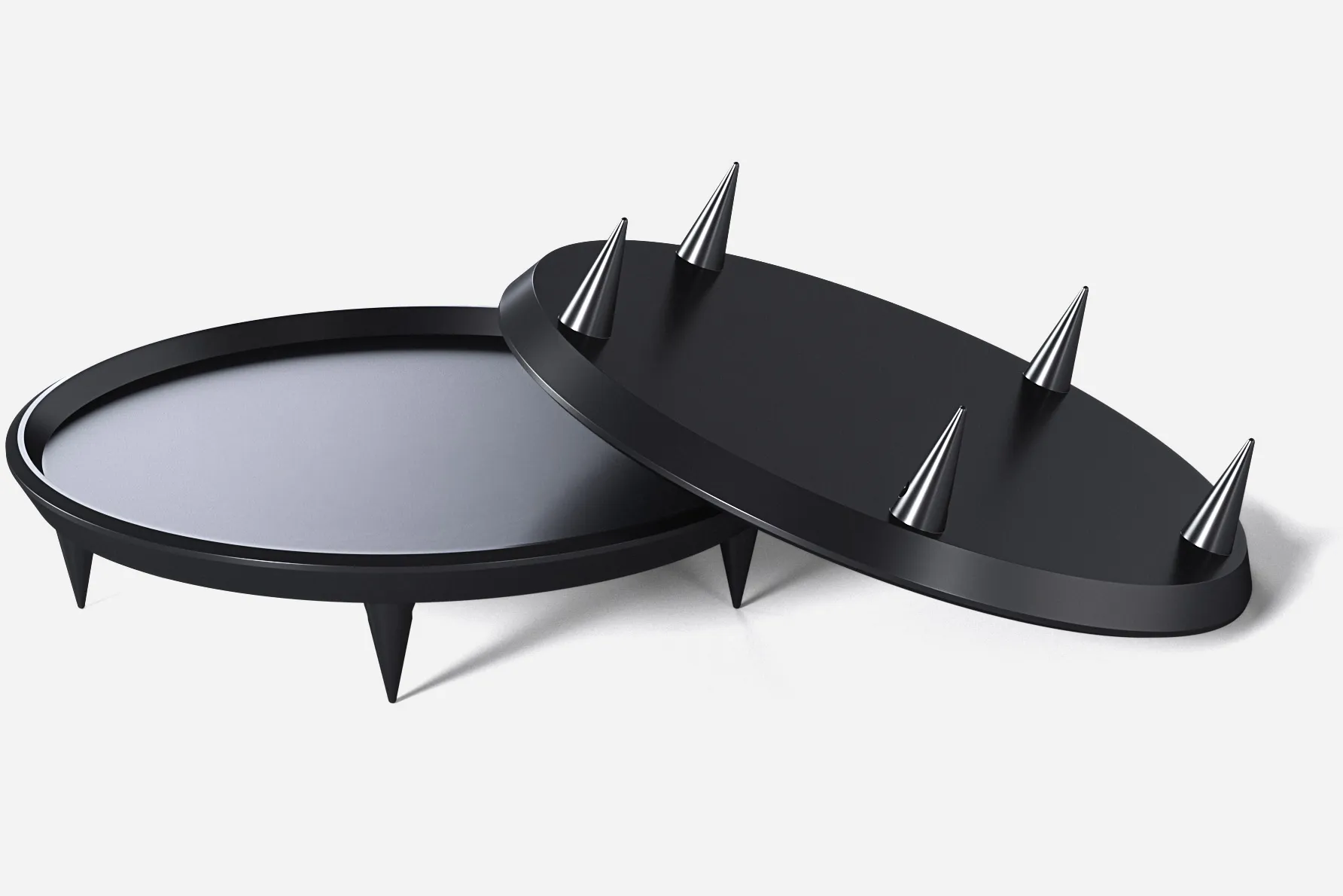

GAIA Carpet Disks
